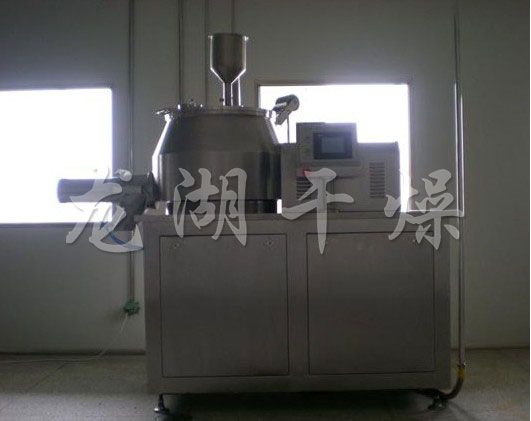

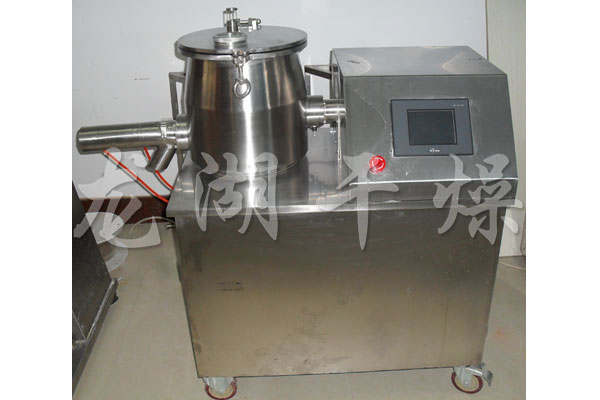

GHL Series High Speed Mixing Granulator
Description：GHL series high-speed mixing granulator is fully mixed with powder material and adhesive in the cylindrical container from the bottom mixing slurry into a wet soft material, and then cut into uniform wet particles by the side-mounted high-speed crusher. .
Details
Working Principle
Powder material and adhesive are fully mixed into a moist soft material in the cylindrical container from the bottom mixing slurry, and then cut into uniform wet particles by high-speed pulverizing paddles placed on the side.
Performance characteristics
◎ This machine adopts horizontal cylinder structure, reasonable structure.
◎ Inflatable sealed drive shaft, switchable to water when cleaning.
◎ fluidized granulation, granulation approximate spherical, good fluidity.
◎ 25% less adhesive than traditional process, shorter drying time.
◎ Only dry mix 2 minutes for each batch, granulation 1-4 minutes, 4-5 times more efficient than traditional process.
◎Complete in the same closed container, dry mix-wet mix-granulation, process shortening.
◎ The entire operation has strict safety protection measures.
◎ can be made according to user requirements jacket type.
Technical specifications
model A B C×D E F 50 320 950 1250×800 970 1650 150 420 1,000 1350×800 1050 1750 200 500 1100 1650×940 1450 2050 250 500 1160 1650×940 1400 2260 300 550 1200 1700×1000 1400 2310 400 670 1300 1860×1100 1550 2410 600 750 1500 2000×1230 1750 2610
name model 50 150 200 250 300 400 600 Volume L 50 150 200 250 300 400 600 Yield kg/batch 15 50 80 100 130 200 280 Mixing speed rpm 200/400 180/270 180/270 180/270 140/220 106/155 80/120 Hybrid power kw 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30 Cutting speed rpm 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 Cutting power kw 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11 Compressed air consumption m3/min 0.6 0.9 0.9 0.9 1.1 1.5 1.8 Weight kg 500 800 1,000 1300 1800 2200 2600
