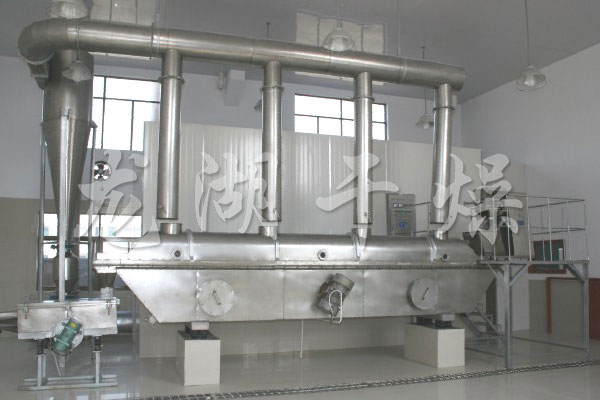

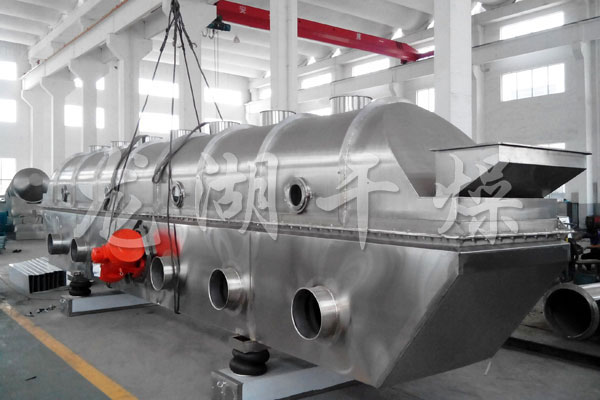

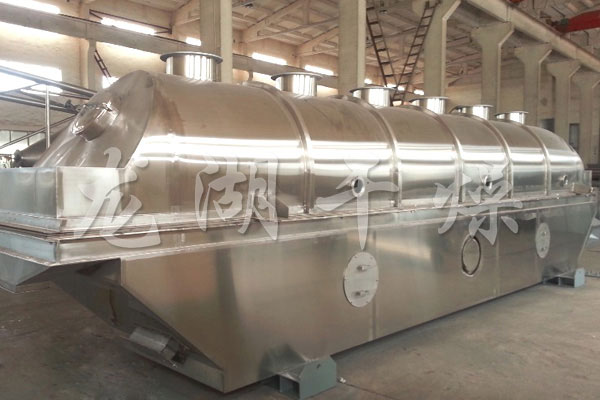

ZLG series vibration fluidized bed dryer
Description：Fluidized bed dryer is the material from the feed inlet into the machine, under the action of vibration force, the material along the horizontal fluidized bed throw, forward continuous movement, hot air upwards through the fluidized bed with the wet material heat exchange After the wet air is removed by the cyclone 1:3 after the dust is removed by the cyclone separator. Dry material is discharged from the discharge inlet. Applicable to chemical, pharmaceutical, food, dehydrated vegetables, food, minerals and other industries of powder, granular...
Details
Working principle The
material enters into the machine from the feed inlet. Under the action of vibration force, the material is thrown along the horizontal fluidized bed and continuously moves forward. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the humid air passes through the cyclone separator. Dust removal by exhaust 1:3 discharge. Dry material is discharged from the discharge inlet
Adaptable materials are
suitable for the drying and cooling of powdery and granular materials in the chemical, pharmaceutical, food, dehydrated vegetables, food, minerals and other industries. Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, radish, soybean meal, distiller's grains, seeds, slag, sugar and so on.
Performance characteristics
◎Vibration source is driven by vibration motor, smooth operation, convenient maintenance, low noise, long life.
◎ Fluidized and uniform, no dead space and blow-through phenomenon, uniform drying and cooling products can be obtained.
◎Adjustability is good and width is applicable. The layer thickness and the speed of movement in the machine and the change of the full amplitude can achieve stepless adjustment.
◎ damage to the surface of the material is small. It can be used for the drying of fragile materials. When the material particles are irregular, it will not affect the work effect.
◎ Adopt fully enclosed structure. Effectively prevent cross-infection between materials and air, and clean the operating environment.
◎ High mechanical efficiency and thermal efficiency, good energy-saving effect, energy saving 30-60% compared to general drying equipment.
Technical specifications
Size / Model A B C D E F Weight (kg) ZLG3×0.30 3000 300 1350 900 430 1650 1250 ZLG 4.5×0.30 4500 300 1350 900 430 1650 1250 ZLG 4.5×0.45 4500 450 1550 950 430 1700 1670 ZLG4.5×0.60 4500 600 1650 950 430 1700 1670 ZLG6×0.45 6000 450 1650 950 430 1700 2100 ZLG6×0.60 6000 600 1700 1,000 500 1700 2410 ZLG6×0.75 6000 750 1850 1,000 600 1850 2840 ZLG6×0.9 6000 900 2000 1,000 600 1850 3160 ZLG7.5×0.60 7500 600 1850 1,000 600 1850 3200 ZLG7.5×0.75 7500 750 2000 1,000 600 1850 3600 ZLG7.5×0.9 7500 900 2100 1,000 600 1850 4140 ZLG7.5×1.2 7500 1200 2500 1150 800 2050 5190
model Fluidized bed area
(M2) Inlet temperature
( o C) Outlet temperature
( o C) Evaporation capacity
(kg) Vibration motor model Power Kw ZLG3×0.30 0.9 70-140 40-70 20-35 ZDS31-6 0.8×2 ZLG4.5×0.30 1.35 70-140 40-70 35-50 ZDS31-6 0.8×2 ZLG4.5×0.45 2.025 70-140 40-70 50-70 ZDS32-6 1.1×2 ZLG4.5×0.60 2.7 70-140 40-70 70-90 ZDS32-6 1.1×2 ZLG6×0.45 2.7 70-140 40-70 80-100 ZDS41-6 1.5×2 ZLG6×0.60 3.6 70-140 40-70 100-130 ZDS41-6 1.5×2 ZLG6×0.75 4.5 70-140 40-70 120-140 ZDS42-6 2.2×2 ZLG6×0.9 5.4 70-140 40-70 140-170 ZDS42-6 2.2×2 ZLG7.5×0.60 4.5 70-140 40-70 130-150 ZDS42-6 2.2×2 ZLG7.5×0.75 5.625 70-140 40-70 150-180 ZDS51-6 3.0×2 ZLG7.5×0.9 6.75 70-140 40-70 160-210 ZDS51-6 3.0×2 ZLG7.5×1.2 9 70-140 40-70 200-260 ZDS51-6 3.0×2
★ Above evaporation is the maximum evaporation.
