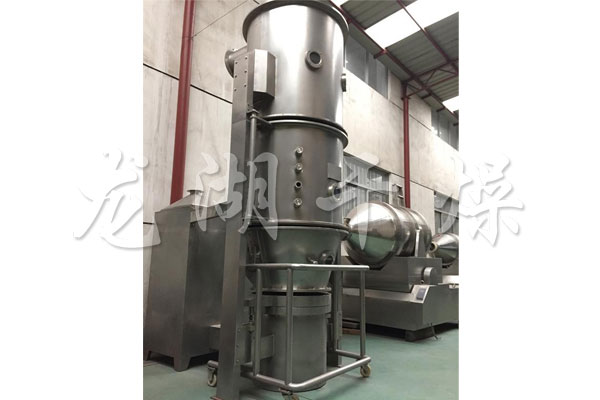

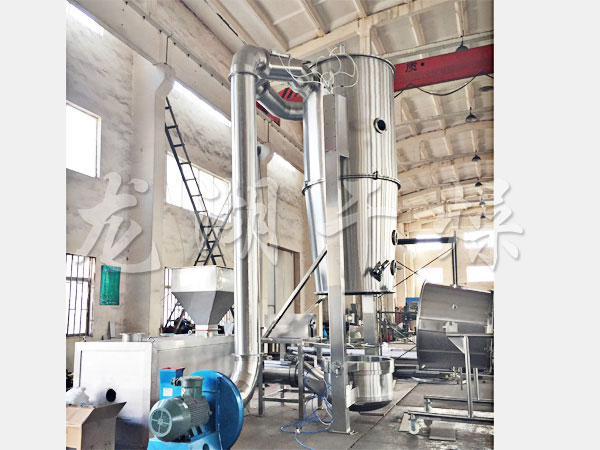

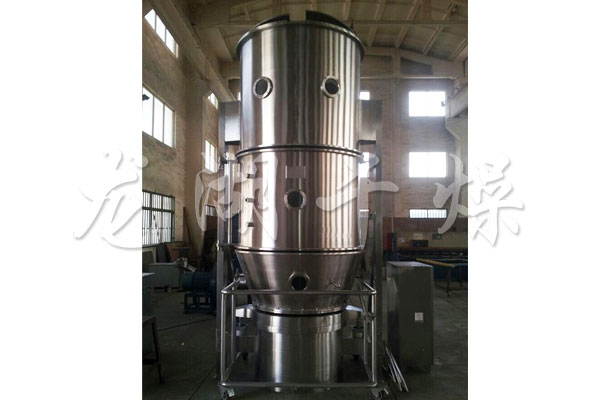

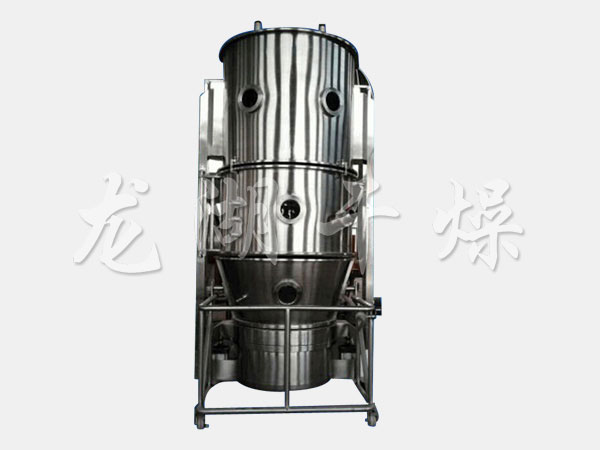

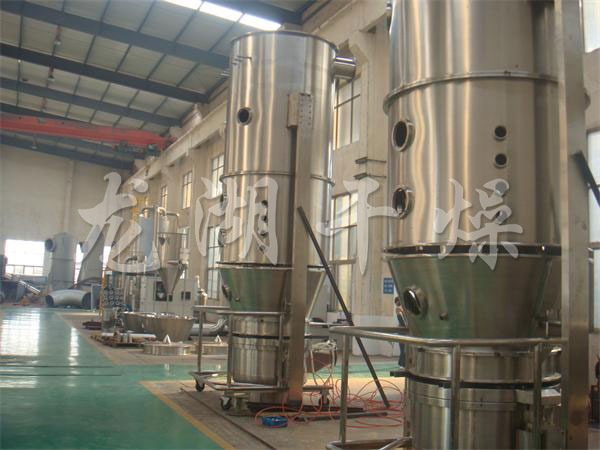

FL, FG Series Vertical Boiling (Pelletizing) Dryer
Description：The principle of FL, FG series vertical boiling granulation drying machine is that the material powder particles are in a circular fluidized state in the raw material container (fluidized bed), preheated and mixed by the purified heated air, and will be sticky. The mixture solution is atomized and sprayed, so that several particles are aggregated into a binder-containing agglomerate. Due to the continuous drying of the material by the hot air, moisture in the agglomerate evaporates, the binder solidifies, and the process is continuously repeated....
Details
Applications
◎ Pharmaceutical granulation and coating
granulation: Tablets, granules, capsules.
Coating: Granules, pills protective layer, color preparation, slow release, film, enteric coating.
◎ food granulation and coating
sugar, coffee, cocoa powder, cream, powdered fruit juices, amino acids, seasonings, puffed foods.
◎ Pesticides, pigments, dyes, granulation
◎ powder, granules, block materials dry
Performance characteristics
◎ Through powder granulation, improve fluidity, reduce dust flying;
◎ Through the powder granulation, to improve its dissolution performance;
◎ Mixing - granulation - Drying - completed in a machine (one-step granulation);
◎ Adopt Antistatic filter material, equipment operation safety;
◎ adhesive atomizer using a multi-fluid spray gun, uniform mist particles, greatly improving the passing rate of finished products;
◎ no dead equipment, loading and unloading materials, light and fast, clean.
1. Medium-efficiency filter 2, sub-high-efficiency filter 3, heater 4, damper valve 5, fluidized bed 6, infusion pump 7, compressed air 8, induced draft fan 9, silencer 10, shock absorber
Technical specifications
specification 3 5 15 30 45 60 90 120 150 200 300 500 capacity 12 twenty two 45 100 155 220 300 420 530 660 1,000 1500 Processing capacity 1.5/4.5 4/6 10/20 15/45 25/65 40/80 60/120 80/160 90/200 100/300 150/450 300/300 Fan power 2.2 3 4 5.5 7.5 11 15 18.5 18.5 twenty two 30 37 Steam consumption 12 twenty three 42 70 99 141 169 211 251 282 366 451 Compressed air consumption 0.3 1.3 0.3 0.4 0.4 0.6 0.6 0.9 0.9 0.9 1.3 1.5 noise (fan installation isolation) ≤75 Dimensions 1.0
× 0.55
× 1.8 1.2
× 0.6
× 2.1 1.25
× 0.9
× 2.1 1.6
× 0.9
× 2.3 1.65
×1.1
×2.4 1.85
× 1.25
× 3 1.85
× 1.25
× 3 2.2
× 1.65
× 3.1 2.27
× 1.72
× 3.1 2.34
× 1.9
× 3.5 2.8
× 1.9
× 3.8 3
× 2.55
× 4.2
Note: FG without granulation
