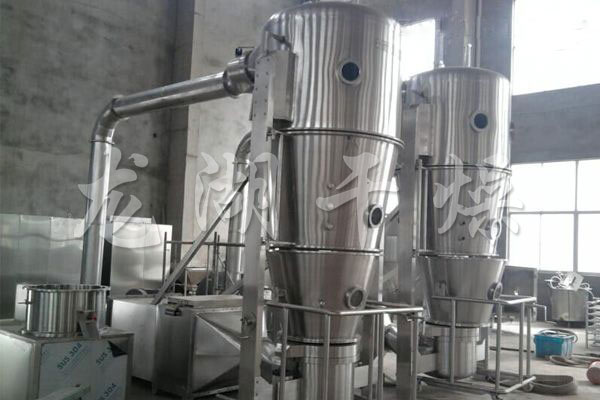

PGL Series Spray Dryer Granulator
Description：The working process of this unit is that the feed liquid passes through the high pressure input of the diaphragm pump, sprays droplets of mist, and then flows down in parallel with the hot air. Most of the powder is collected by the bottom discharge outlet, and the exhaust gas and its tiny powder are transported by the cyclone. The separator is separated and the exhaust gas is discharged by the exhaust fan. The powder is collected by a pollination cylinder located at the lower end of the cyclone separator. The fan outlet can also be equipped with a secondary dust removal device, and the recovery rate is above 96-98%.
Details
Product Overview
This unit is a device that can complete drying and pelletizing at the same time. According to the process requirements, the pressure, flow rate, and size of the orifices of the feed pump can be adjusted to obtain the desired spherical particles in a certain size ratio.
The working process of the unit is that the feed liquid passes through the high pressure input of the diaphragm pump and sprays droplets of mist, which then flow down in parallel with the hot air. Most of the particles are collected at the bottom of the tower and the exhaust gas and its tiny powder are separated by a cyclone separator. The exhaust gas is discharged by the exhaust fan. The powder is collected by a pollination cylinder located at the lower end of the cyclone separator. The fan outlet can also be equipped with a secondary dust removal device with a recovery rate of 96-98%.
The material of the tower body, pipelines, and separators that are in contact with the material of this unit is made of SUS304. There is a sufficient moisture-retaining layer between the inside of the tower body and the shell, and the filling material is ultra-fine glass wool. The tower body is provided with an observation door, a sight glass, a light source and a control instrument, which are controlled and displayed by an electric control console.
Product Application
Pharmaceutical Industry: tablets, granules, capsules; low-sugar, sugar-free proprietary Chinese medicine granules; food: cocoa, coffee, milk powder, granular juices, seasonings, etc.; other industries: pesticides, feed, fertilizers, pigments, dyes Wait.
Product features
1. Drying speed is fast, the surface area of material liquid is greatly increased after atomization, and 95%-98% of water can be evaporated instantaneously in the hot air current. The drying time only needs ten seconds to several tens of seconds. It is especially suitable for the drying of heat sensitive materials.
2. All products are spherical particles, uniform particle size, good fluidity, good solubility, high product purity, and good quality.
3, the use of a wide range, according to the characteristics of the material, you can use hot air drying, you can also use cold air granulation, the adaptability of the material.
4, the operation is simple and stable, easy to control, easy to implement automated operations.
1. Control cabinet 2, infusion trolley 3, host 4, heat exchanger 5, sub-high efficiency filter 6, muffler 7, induced draft fan
Technical Parameters
project Unit/Model PGL-3B PGL-5B PGL-10B PGL-20B PGL-30B PGL-80B PGL-120B Flow extract Minimal Kg/h 2 4 5 10 20 60 100 maximum Kg/h 4 6 15 30 40 100 140 Boiling capacity Minimal Kg/lot 2 6 10 30 60 100 150 maximum Kg/lot 6 15 30 80 160 250 450 Specific gravity of liquid Kg/L ≤ 1.30 Raw material container volume L 26 50 220 420 620 980 1600 Container diameter Mm 400 550 770 1,000 1200 1400 1600 Fan power Kw 3.0 5.5 7.5 11 15 18.5 30 Auxiliary fan power Kw 0.35 0.75 0.75 1.20 2.20 2.20 4 steam Consumption Kg/h 40 70 99 210 300 366 465 pressure MPa 0.40-0.60 Heat type power Kw 9 15 twenty one 25.5 51.5 60 75 Compressed air Consumption M3/min 0.5 0.8 0.8 0.9 1.1 1.3 1.8 pressure MPa 0.40-0.60 Operating temperature °C Room temperature -160 °C automatic adjustment Product moisture % ≥0.2 Material yield % ≥99 Equipment noise dB <77< td=''> Host size Φ Mm 400 550 770 1,000 1200 1400 1600 H1 Mm 940 1050 1070 1220 1570 1590 1690 H2 Mm 1900 2360 2680 3150 3630 4120 5050 H3 Mm 2050 2590 3020 3600 4180 4770 5800 B Mm 740 890 1110 1420 1620 1820 2100
Selection example: Each batch of treatment liquid extract amount I = 120kg (solid content is 30%), seed quantity II = 60kg, theoretical yield can be derived from I, II M = mI + mII = 120kgx30% +60kg = 96kg, working time T = 120kg/30kg/h = 4h, the boiling point can be found in the technical parameter column as the standard load range, so it is more appropriate to use the PGL-30 type to complete two batches per shift.
