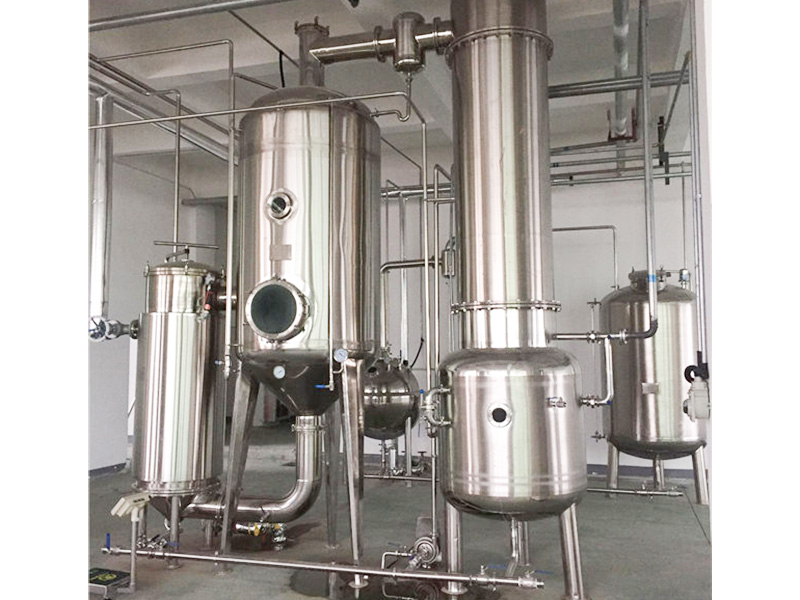

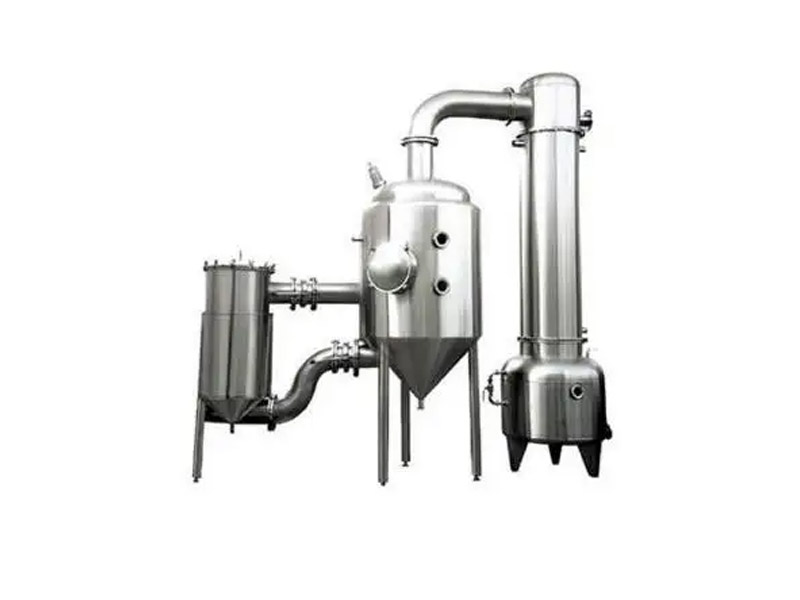

Single-effect waste water evaporator
Description:This equipment is applicable to pharmaceutical, biological, food, chemical and other industries, and is often used for evaporation of traditional Chinese medicine extract, fruit juice, fine chemical solution, etc.
Details
Purpose:
This equipment is applicable to pharmaceutical, biological, food, chemical and other industries, and is often used for evaporation of traditional Chinese medicine extract, fruit juice, fine chemical solution, etc.
characteristic:
A. Compact structure and small station area. The internal and external precision polishing of the equipment meets the GMP requirements.

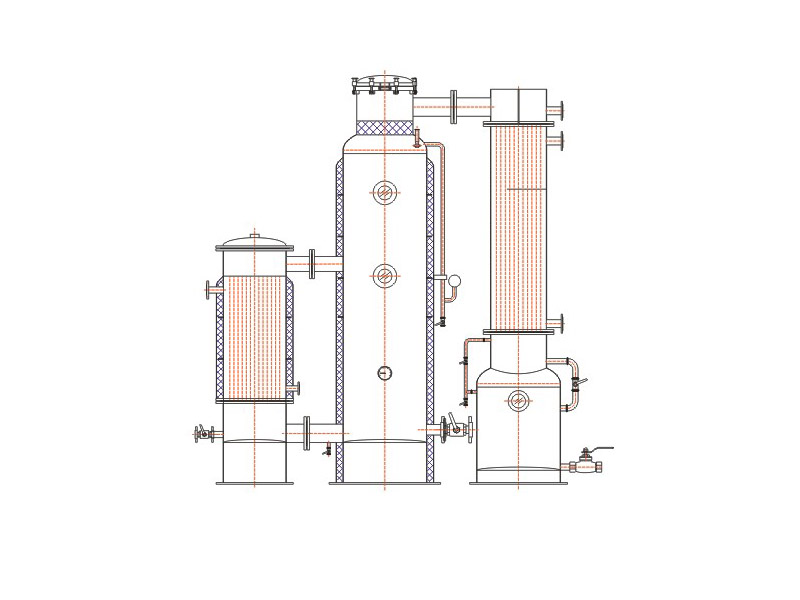

B. The equipment is mainly composed of heater, separator, defoamer, condenser, etc.
C. Vacuum decompression operation is adopted, the evaporation temperature is low, the speed is fast, and the configuration of each instrument valve is reasonable and convenient for operation.
Parameter/model
WZ-300
WZ-500
WZ-750
WZ-1000
WZ-2000
WZ-3000
Evaporation capacity (kg/h)
300
500
750
1000
2000
3000
Heating area (m2)
5.2
8
12
16
32
51
Condensing area (m2)
6
11
15
20
40
65
Steam consumption (kg/h)
330
550
820
1100
2200
3300
Cooling water volume (t/h)
6
10
15
20
40
60
Overall dimension (m)
2.5x1x3.2
2.7x1x3.5
3x1.2x3.7
3.2x1.2x4
4x1.2x4.7
5x1.4x5
