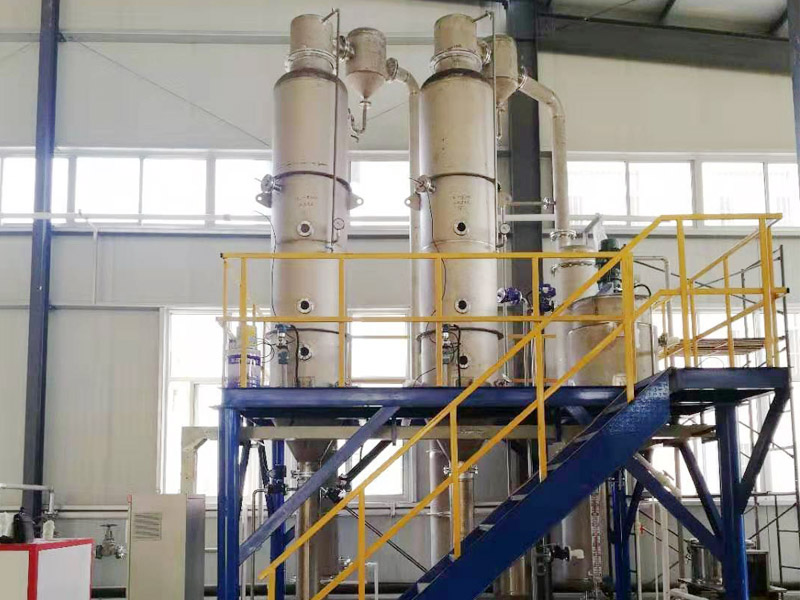

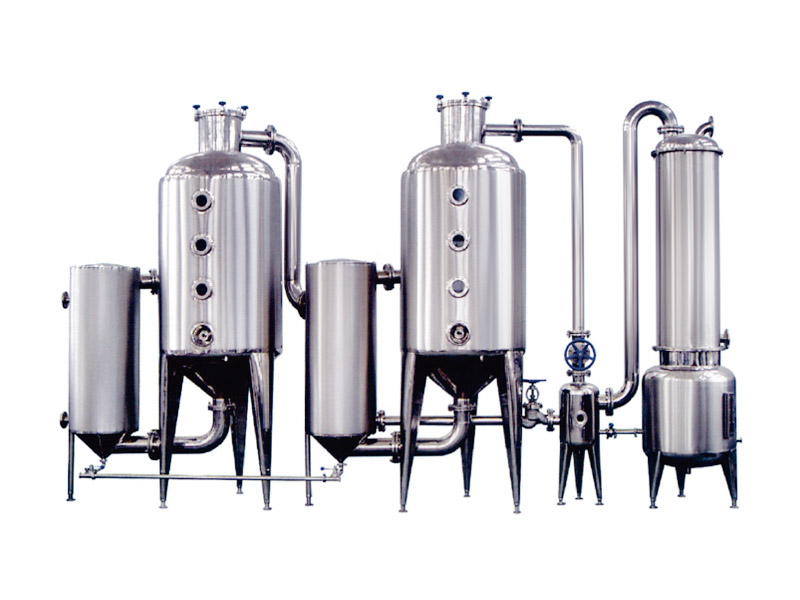

Double-effect waste water evaporator
Description:This equipment is applicable to pharmaceutical, biological, food, chemical and other industries, and is often used for evaporation of traditional Chinese medicine extract, fruit juice, fine chemical solution, etc.
Details
Purpose:
This equipment is applicable to pharmaceutical, biological, food, chemical and other industries, and is often used for evaporation of traditional Chinese medicine extract, fruit juice, fine chemical solution, etc.
characteristic:
A. The secondary steam is fully utilized by using the two-effect simultaneous evaporation, and the effect is remarkable. The internal and external precision polishing of the equipment meets the GMP requirements.

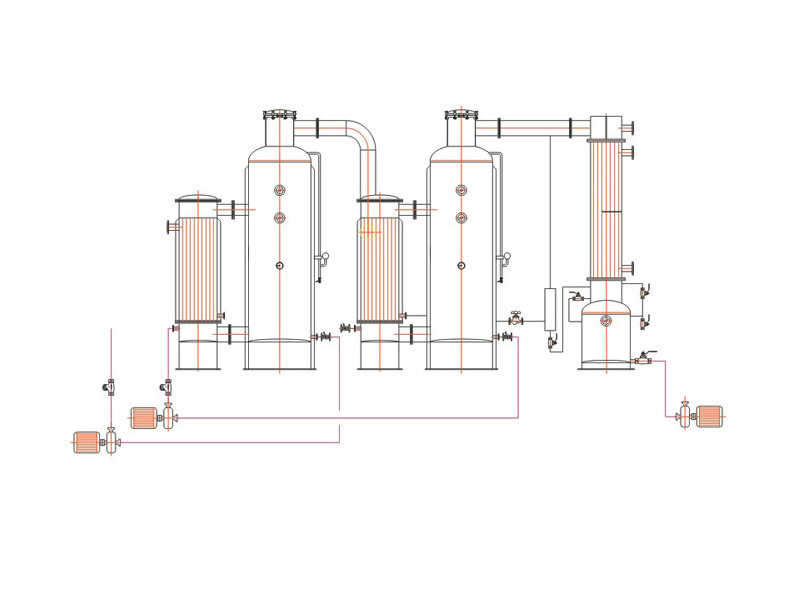

B. The equipment is mainly composed of heater, separator, defoamer, condenser, etc.
C. Vacuum decompression operation is adopted, the evaporation temperature is low, the speed is fast, and the configuration of each instrument valve is reasonable and convenient for operation.
Technical parameters:
Parameter/model
WZ2-500
WZ21000
WZ2-1500
WZ2-2000
WZ2-2500
WZ2-3000
Evaporation capacity (kg/h)
500
1000
1500
2000
2500
3000
Heating area (m2)
5+5
10+10
15+15
20+20
25+25
30+30
Condensing area (m2)
9
18
25
36
45
54
Steam consumption (kg/h)
280
570
850
1140
1420
1710
Cooling water volume (t/h)
9
18
25
36
45
54
Overall dimension (m)
5x1.2x3.5
5.5x1.2x4
5.5x1.2x4
6x1.4x4.5
6x1.4x4.5
6x1.5x5
