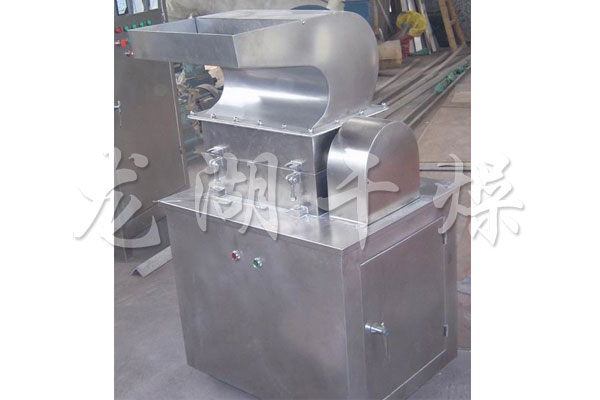

CSJ coarse crusher
Description:This machine is suitable for pharmaceutical, chemical, metallurgy, food, construction and other industries. The processing of hard and hard-to-grind materials, including the smashing of plastics, copper wire, Chinese herbs, rubber, etc., can also be used as an auxiliary equipment for the processing of micro-pulverizers and ultra-fine pulverizers.
Details
Product use
The machine is suitable for pharmaceutical, chemical, metallurgy, food, construction and other industries. Processing of hard and hard-to-grind materials, including smashing of plastics, copper wire, Chinese herbs, rubber, etc., can also be used as ancillary equipment for pre-processing of fine crushers and ultrafine crushers.
Working principle The
material is fed into the crushing chamber by the feed hopper. After being impacted by the blade and the knife seat, the rotating knife and the fixed knife are simultaneously smashed and crushed. Due to the effect of rotating centrifugal force, the material flows out of the outlet automatically.
Technical Parameters
model CSJ-250 CSJ-500 Feed particle size ≤100 ≤100 Discharge particles 0.5-20 0.5-20 Spindle speed 940 1,000 power 4 11 Yield 50-300 80-800 Dimensions 860×650×1020 1120×1060×1050
