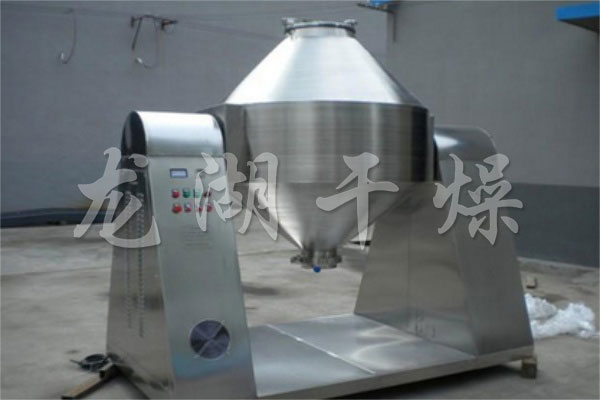

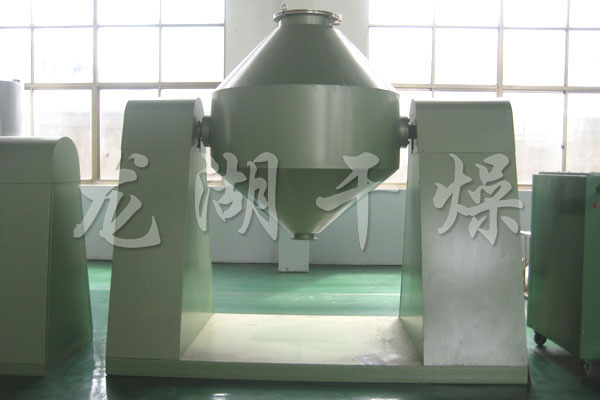

SZH series double cone mixer
Description：SZH series double cone mixer transfers the powder or granular material into the double cone container through vacuum or manually. As the capacity rotates continuously, the material in the container undergoes complex impact motion to achieve even mixing. The machine saves energy, is easy to operate, has low labor intensity, and has high work efficiency. This machine is suitable for the mixing of powdery and granular materials in the pharmaceutical, chemical, food, building materials and other industries.
Details
Performance characteristics
◎ This machine will send powder or granular material into the double cone container through vacuum or artificial feeding. With the continuous rotation of the container, the material will perform complex impact movement in the container to achieve even mixing.
◎ The machine saves energy, is easy to operate, has low labor intensity, and has high work efficiency.
Adaptable Materials
◎ This machine is suitable for the mixing of powdery and granular materials in the pharmaceutical, chemical, food, building materials and other industries.
Technical specifications
Specifications\Project Total volume
L Working volume
L Feeding amount
kg Feed speed
rpm Power
kw Weight
kg 0.05 50 25 15 25 0.55 500 0.15 150 75 45 20 0.75 650 0.3 300 150 90 20 1.1 820 0.5 500 250 150 18 1.5 1250 1 1,000 500 300 15 3 1800 1.5 1500 750 450 12 4 2100 2 2000 1,000 600 12 5.5 2450 3 3000 1500 900 9 5.5 2980 4 4000 2000 1200 9 7.5 3300 5 5000 2500 1500 8 7.5 3880 6 6000 3000 1800 8 11 4550 8 8000 4000 2400 6 15 5200 10 10000 5000 3000 6 18.5 6000
