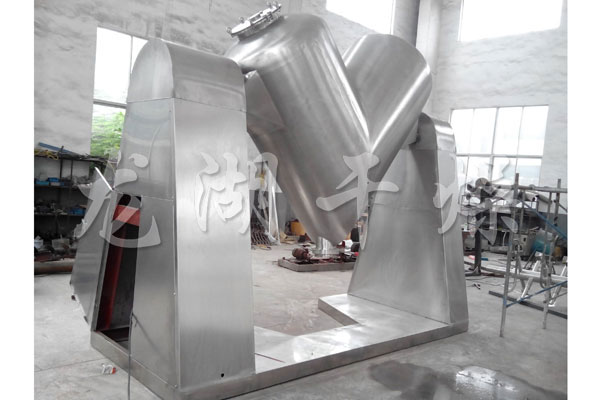

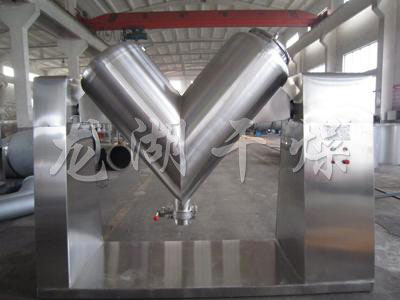

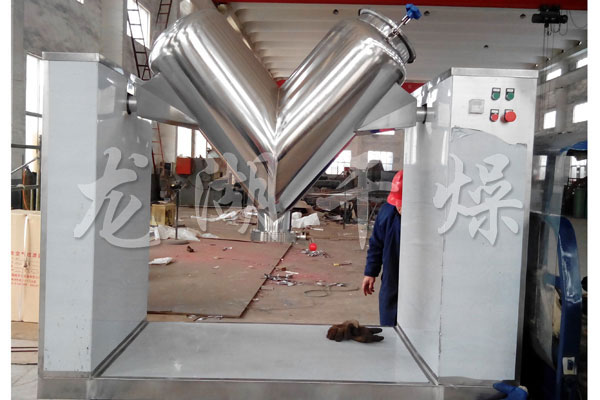

V-shaped mixer
Description：ZKH(V) series mixer has unique mixing tube structure, high mixing efficiency, no dead angle, cylinder made of stainless steel material, inner and outer wall polishing, beautiful appearance, even mixing and wide application. This machine is used for the mixing of dry material granules in the pharmaceutical, chemical, food, metallurgical and other industries.
Details
Performance Features
Mixing cylinder structure unique, high mixing efficiency, no dead ends, cylinder made of stainless steel, polished inner and outer walls, beautiful appearance, mixed evenly, widely used.
Adaptable Materials
The machine is used for the mixing of dry material particles in the pharmaceutical, chemical, food, metallurgical and other industries.
Technical specifications
Specifications\Project Total volume L Work volume L Feeding amount kg Feed speed rpm Power kw Weight kg 0.05 50 25 15 25 0.55 500 0.15 150 75 45 20 0.75 650 0.3 300 150 90 20 1.1 820 0.5 500 250 150 18 1.5 1250 1 1,000 500 300 15 3 1800 1.5 1500 750 450 12 4 2100 2 2000 1,000 600 12 5.5 2450 3 3000 1500 900 9 5.5 2980 4 4000 2000 1200 9 7.5 3300 5 5000 2500 1500 8 7.5 3880 6 6000 3000 1800 8 11 4550 8 8000 4000 2400 6 15 5200 10 10000 5000 3000 6 18.5 6000
