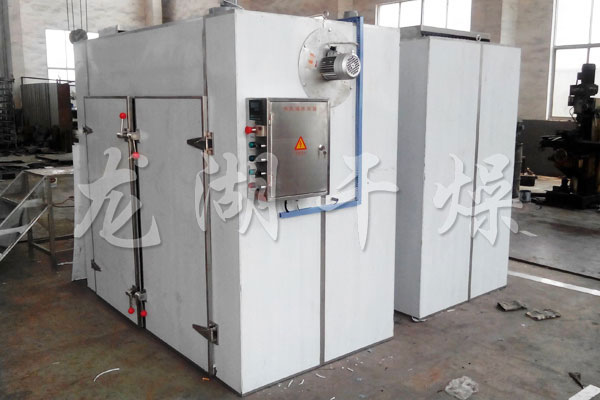

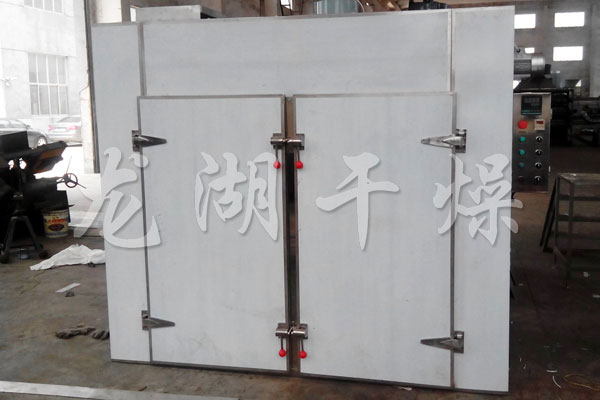

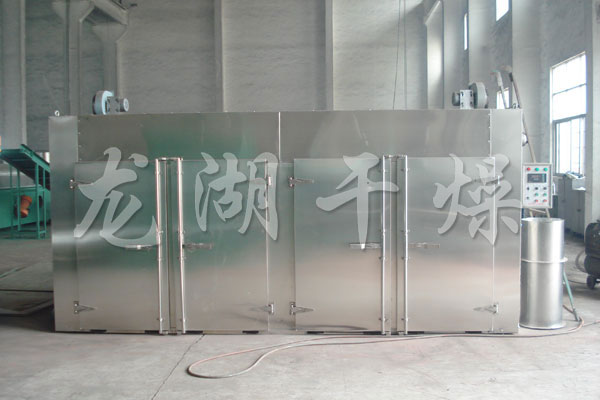

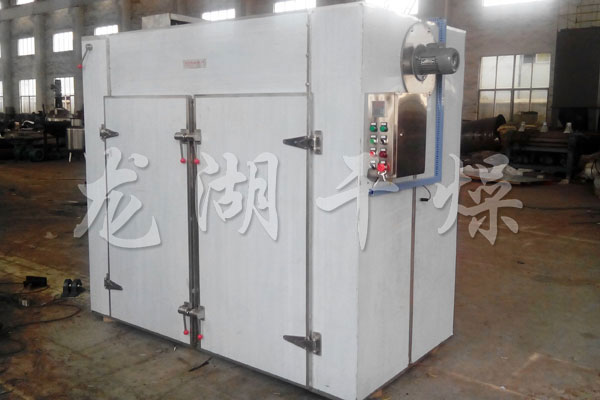

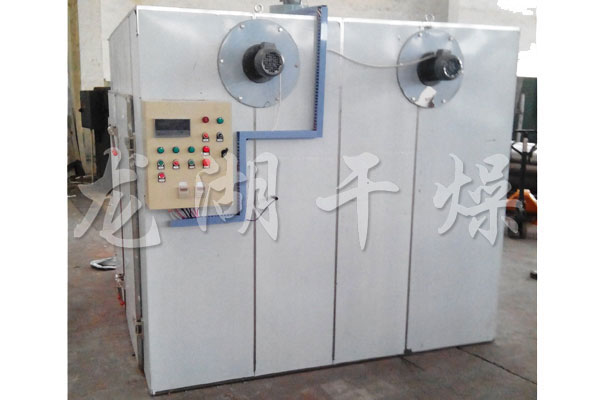

Pharmaceutical GMP Oven
Description：The medical type GMP oven has a heating source of steam, electricity, and steam. Three types of use temperature: The temperature is automatically controlled and recorded by the recorder. The inner wall of the box is fully welded. All kinds of transitions are used. Arc over, no dead ends. The machine has good sealing performance and unique rail sealing device ensures the sealing performance of the whole machine; the air inlet is equipped with a high-efficiency air filter; the moisture outlet is matched with a medium efficiency air filter. bake…
Details
Product Description
◎There are three types of heating sources: steam, electricity, and steam.
◎Using temperature: steam heating 50-140°C, maximum 150°C; electric heating 50-350°C;
◎Automatic temperature control and recording by recorder;
◎Full internal welding of the tank wall, circular transitions at all transitions No dead ends.
◎The whole machine has good sealing performance. The unique guide rail sealing device ensures the sealing performance of the whole machine.
◎ The air inlet is equipped with a high-efficiency air filter; The air outlet is equipped with a medium efficiency air filter.
◎Double door double ovens for mechanical interlocking;
◎All parts in the oven can be quickly disassembled and installed quickly to facilitate cleaning;
◎The control system is equipped with text display and touch screen to choose from;
◎The whole machine meets 'GMP' requirements .
Technical specifications
Model/Specifications Each drying amount
(kg) Fan power
(kw) Consumption of steam
(kg/h) Bake car
(vehicle) Baking plate
(only) Width × depth × height
(mm) Upper and lower temperatures
(°C) GMP-O 35 0.45 8 / 16 1130×1100×1750 ±2 GMP-I 120 0.45 18 2 48 2300×1200×2000 ±2 GMP-II 240 0.9 36 4 96 2300×2200×2000 ±2 GMP-III 360 1.35 54 6 144 3430×2200×2000 ±2 GMP-IV 480 1.8 72 8 192 4460×2200×2290 ±2
