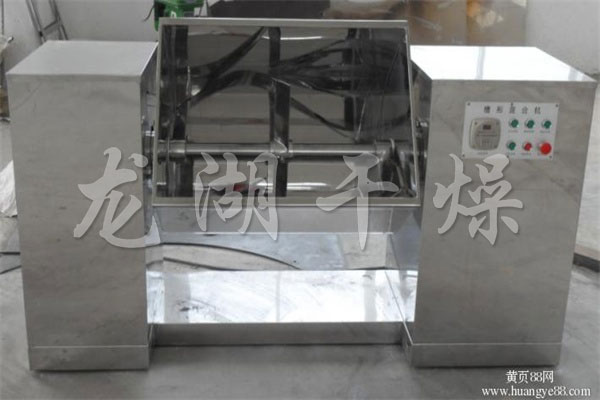

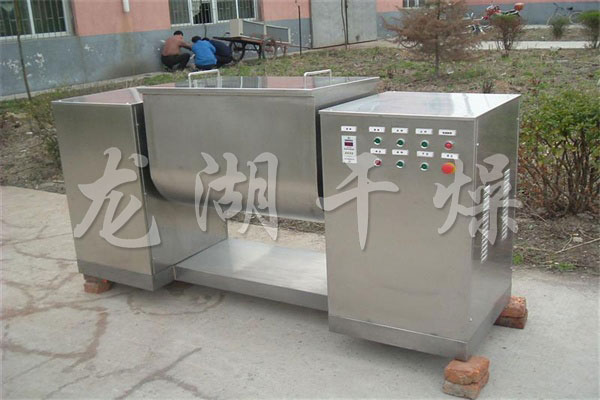

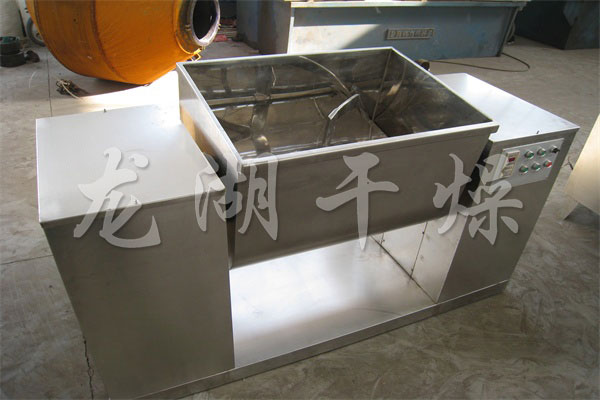

CH Series Trough Mixer
Description：CH series trough mixer is used to mix powdery or wet materials, so that different proportions of main and auxiliary materials are mixed evenly. The contact between the machine and the material is made of stainless steel. The gap between the blade and the barrel is small. There is no dead angle in the mixing. Sealing devices are installed on both sides of the agitator shaft to prevent the material from escaping. The hopper adopts button jog control and the material discharge is convenient. Widely used in pharmaceutical, chemical, food and other industries
Details
The product description is
used to mix powdery or wet materials, so that different proportions of main and auxiliary materials are mixed evenly.
Performance characteristics
◎ This machine is in contact with the material are made of stainless steel, paddle and barrel body gap is small, no dead angle mixing, mixing material at both ends of the shaft with a sealing device, can prevent the material from diarrhea.
Adaptable materials are
widely used in pharmaceutical, chemical, food and other industries.
Technical specifications
Capacity (L) 100 150 200 400 Motor power (kw) 2.2 3 3 5.5 Stirring speed (rpm) twenty four twenty four twenty four twenty four Pour angle (×) 105 105 105 105 Weight (kg) 350 500 650 1200 Overall size (mm) 1400×500×1000 1600×600×1100 1800×700×1200 2000×820×1460
