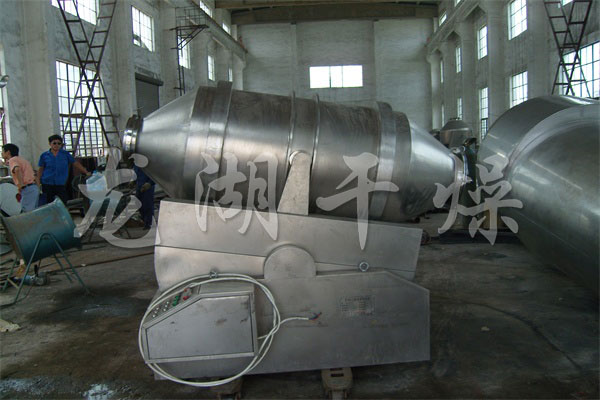

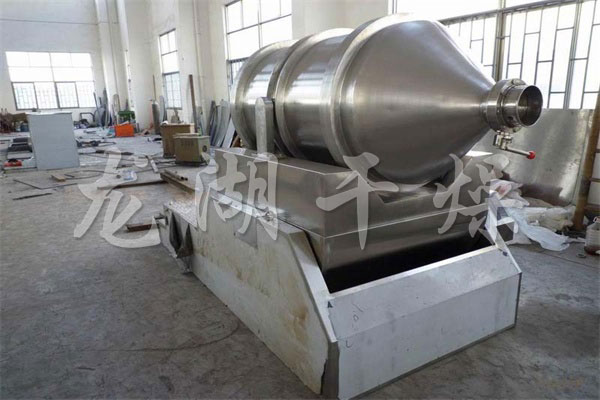

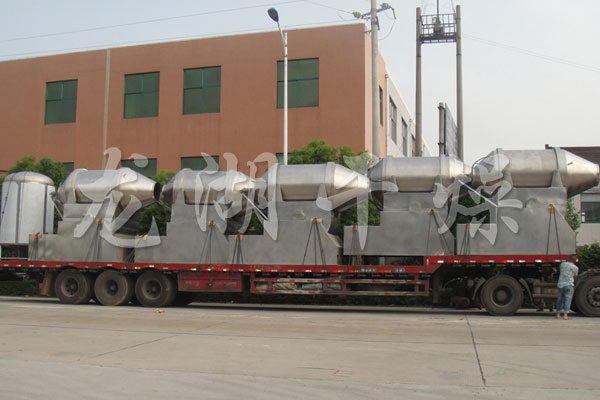

EYH Series Two-dimensional Motion Mixer
Description：Two-dimensional mixer is mainly composed of three parts : drum, swing frame and frame. The rotating drum is mounted on a swinging frame and is supported by four rollers and axially positioned by two stop wheels. Among the four supporting rollers, two of the driving wheels are dragged by a rotating power system to rotate the rotating drum. The swing frame is driven by a set of crank-pendulum mechanism, the crank-pendulum mechanism is on the frame, and the swing frame is supported by the bearing assembly on the frame...
Details
Working principle
Two-dimensional mixer mainly consists of three parts: drum, swing frame and frame. The rotating drum is mounted on a swinging frame and is supported by four rollers and axially positioned by two stop wheels. Among the four supporting rollers, two of the driving wheels are dragged by a rotating power system to rotate the rotating drum. The swing frame is driven by a set of crank rocker mechanisms. The crank rocker mechanism is on the frame and the swing frame is supported by the bearing assembly on the frame.
Performance Features
The drum of the EYH two-dimensional blender can simultaneously perform two movements, one for the rotation of the drum and the other for the swing of the drum with the swing frame. The mixed material rotates, flips, and mixes with the rotating drum in the drum, and at the same time, the back and forth mixing movement occurs along with the swing of the drum. Under the joint action of these two movements, the material is fully realized in a short time. the mix of. EYH two-dimensional blender is suitable for mixing all powder and granular materials.
Technical specifications
Specifications Volume (L) Loading factor Loading weight
(kg) Overall size (mm) Power (kw) A B C D M H Rotating swing EYH100 100 0.5 40 860 900 200 400 1,000 1500 1.1 0.75 EYH300 300 0.5 75 1,000 1100 200 580 1400 1650 1.1 0.75 EYH600 600 0.5 150 1300 1250 240 720 1800 1850 1.5 1.1 EYH800 800 0.5 200 1400 1350 240 810 1970 2100 1.5 1.1 EYH1000 1,000 0.5 350 1500 1390 240 850 2040 2180 2.2 1.5 EYH1500 1500 0.5 550 1800 1550 240 980 2340 2280 3 1.5 EYH2000 2000 0.5 750 2000 1670 240 1100 2540 2440 3 2.2 EYH2500 2500 0.5 950 2200 1850 240 1160 2760 2600 4 2.2 EYH3000 3000 0.5 1100 2400 1910 280 1220 2960 2640 5 4 EYH5000 5000 0.5 1800 2700 2290 300 1440 3530 3000 7.5 5.5 EYH10000 10000 0.5 3000 3200 2700 360 1800 4240 4000 15 11 EYH12000 12000 0.5 4000 3400 2800 360 1910 4860 4200 15 11 EYH15000 15000 0.5 5000 3500 3000 360 2100 5000 4400 18.5 15
NOTE: Material Press bulk specific gravity 0.6 g of / cm & lt . 3 is a meter, such as beyond, indicate when ordering.
